Technical Overview

The Job Card display element tells the operator, which job is currently assigned/being processed on a specific media slot.

Jobs are "work" instances of Tickets, (see here).  Tickets are typically transmitted from an external system via the X⁵ Ticket API to the RX400 in a JSON format.

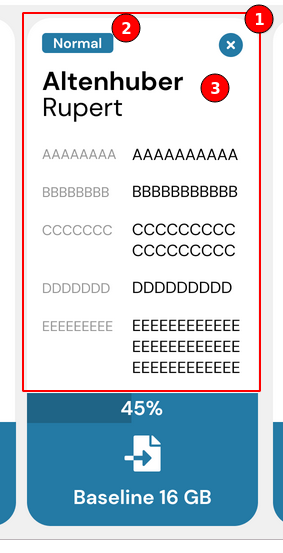

The Job Card Screenshot below shows

1. The Job Card area
2. The Job/Ticket priority badge
3. The list of job fields, with label and value

The ticket JSON object contains a values object, specifying the data to be used in the user interface. values contains an arbitrary amount of key/value pairs. In the RX400 there are two configurations for the display in the job card:

1.  A mapping between value keys and job fields.
2. The translation of value keys to be used as job field labels.

On the RX400 there are 7 job fields and only the labels for fields 3 to 7 are displayed.  The label for job field 1 and 2 are not shown.

Here is the data for the RX400 job card:

job field number	has label	Font size label/value	Number of lines	Number of characters label/value (aprox)	Config key
1	no	-/26 Bold	1	-/13	param_1
2	no	-/26	1	-/15	param_2
3	yes	14/16	1	8/10	param_3
4	yes	14/16	1	8/10	param_4
5	yes	14/16	2	8/10	param_5
6	yes	14/16	1	8/10	param_6
7	yes	14/16	3	8/10	param_7

Example:

The following RX400 configuration:

config_key	key	label	translation de	comment
job_field_1	surname	null	null
job_field_2	given_name	null	null
job_field_3	birthday	Birthday	Geburtsdatum
job_field_4	issuer	Id	PNr.	PNr. for Personalnummer - personnel id number
job_field_5	captured	Time	Zeit
job_field_6	modality	Modality	Gerät
job_field_7	target_media	Medium	Speicher

with a value JSON object as follows:

"settings": {
    ...
    "priority": 10,
    ...
},
"values": {
  "id":  "bccd5432-a3b2-11ec-b909-0242ac120002",
  "target_media": "Rimage Baseline 20GB",
  "issuer": "Dr. Brunner",
  "captured": "20/12/2021 11:31",
  "modality": "CT",
  "station": 8,
  "patient_id": "5d506d4c-0d07-44a6-aa7c-61574c513c46"
  "patient_ssn": "269-96-4442",
  "surname": "Altenhuber",
  "given_name": "Rupert",
  "birthday": "1/3/1977",
}

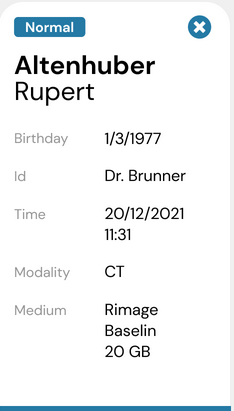

yields a job card like this when the RX400 user language is English:
